Main Features and Benefits

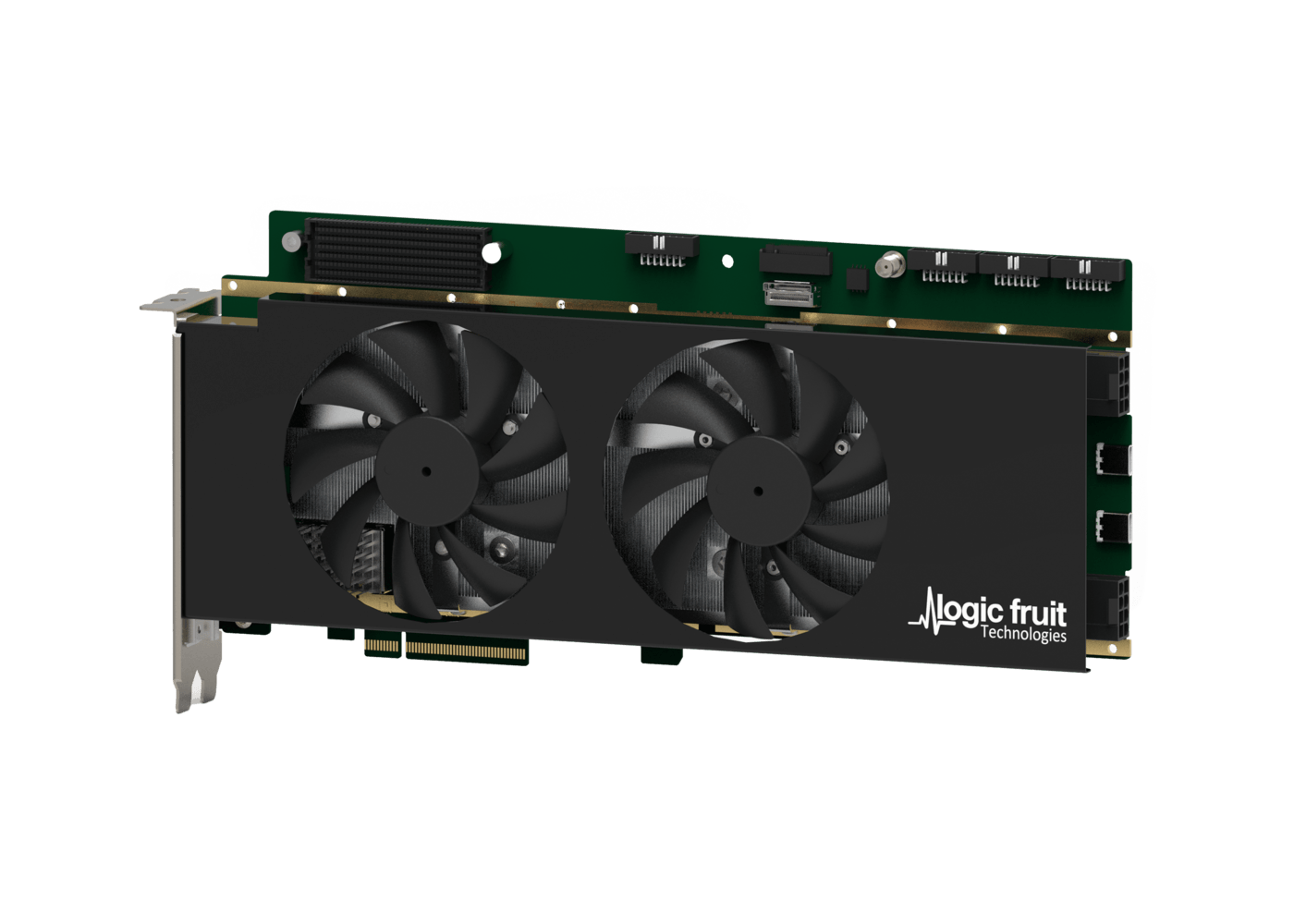

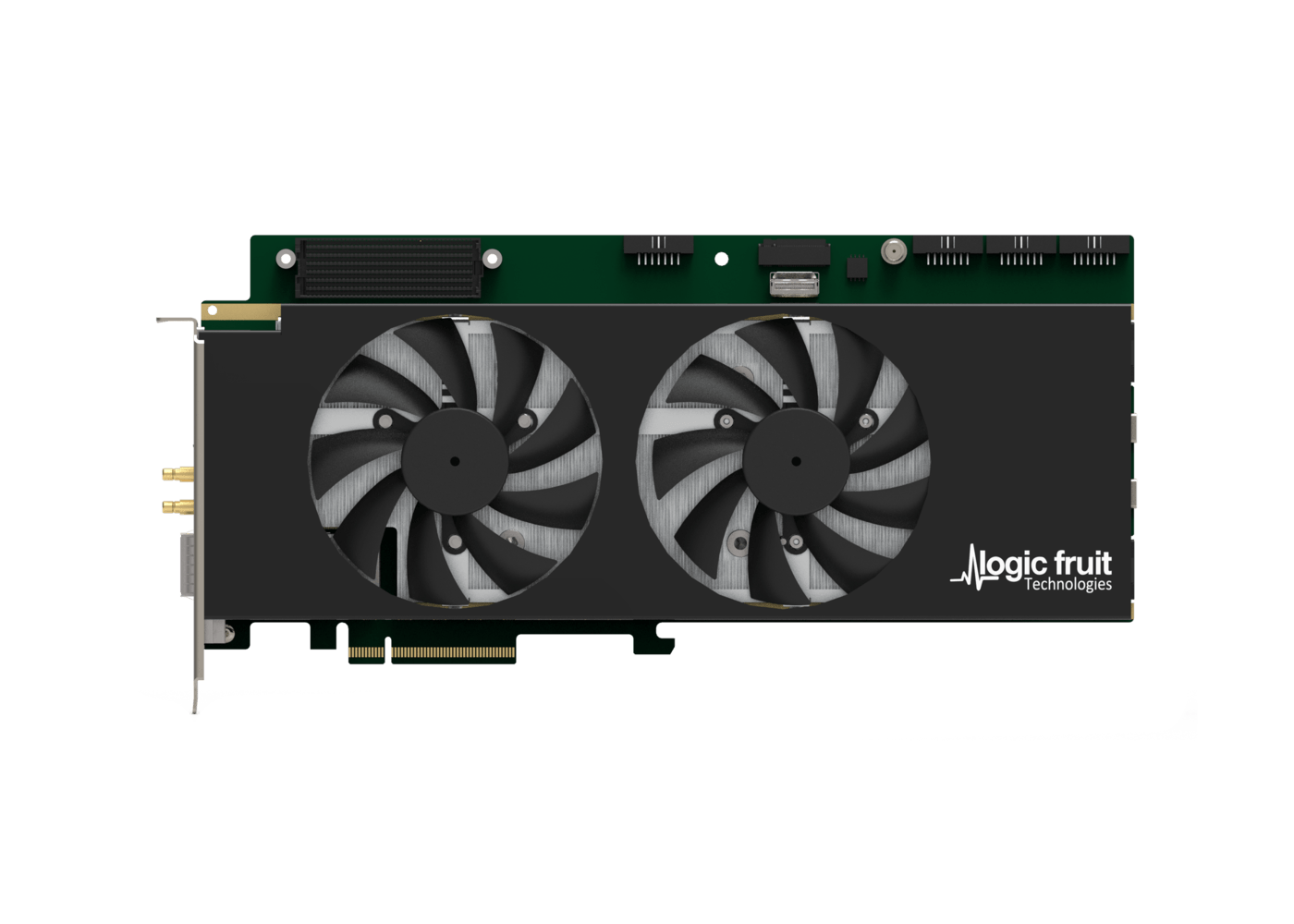

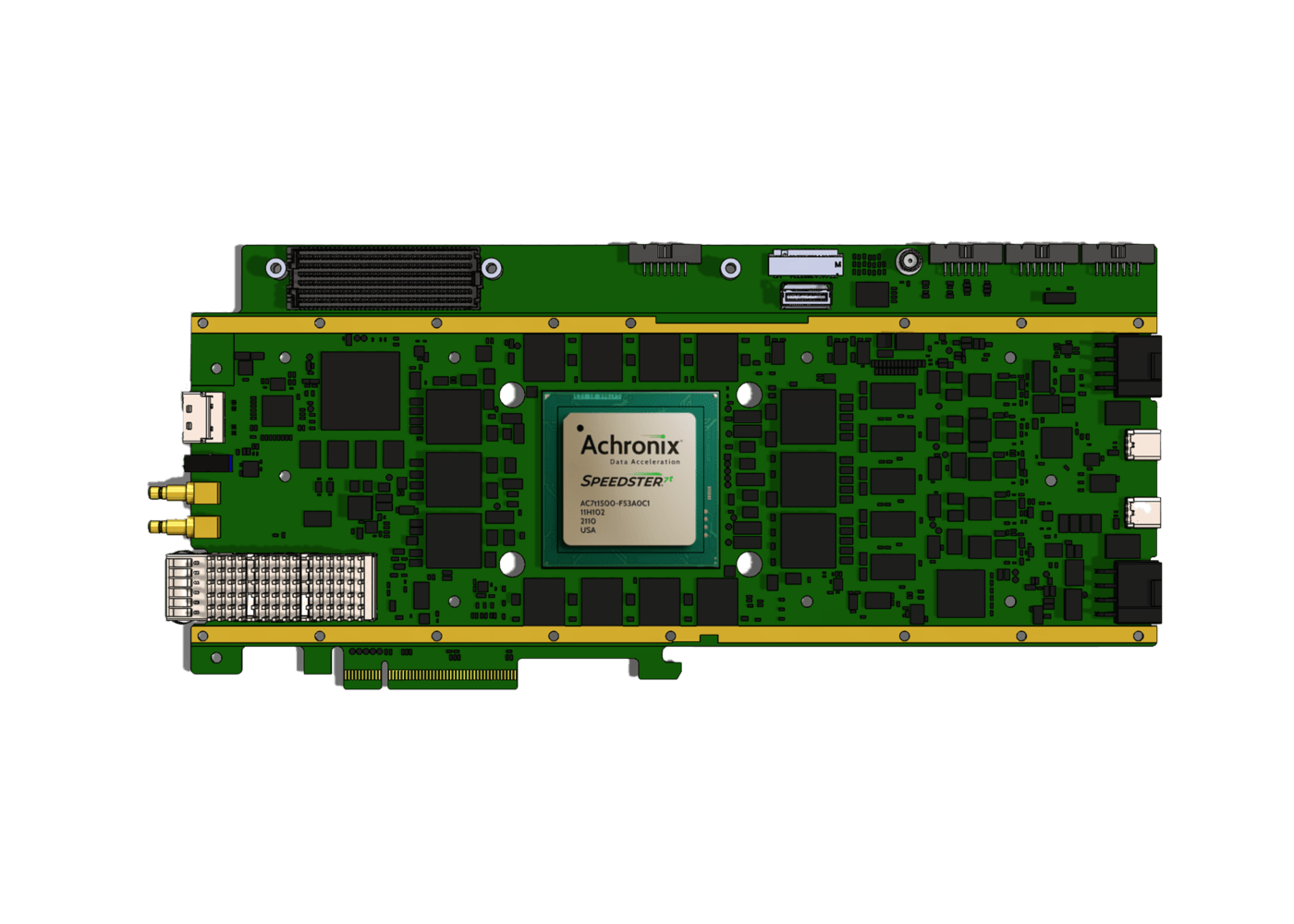

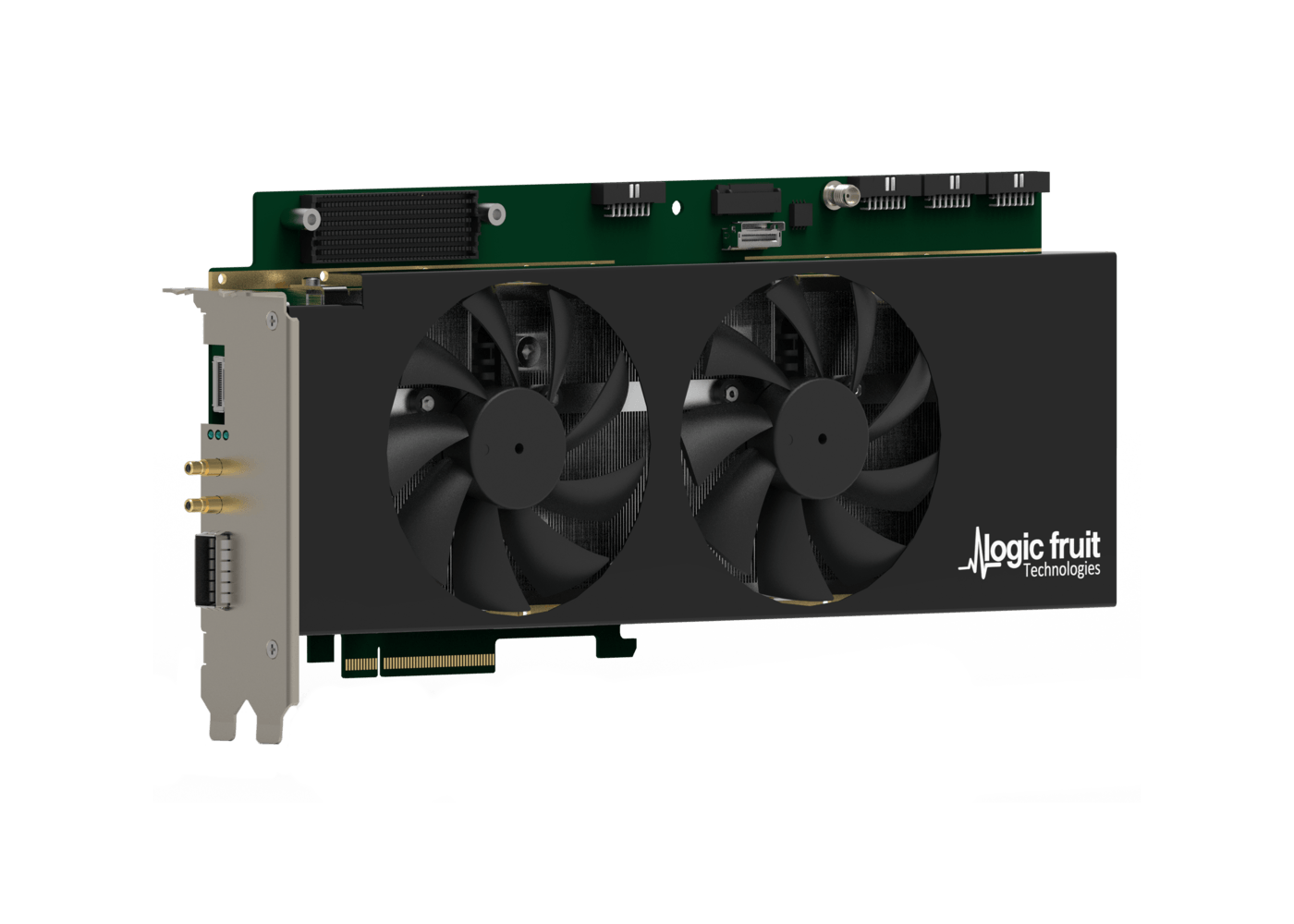

The Varin AC7t1500 Development Board is based on the Achronix Speedster AC7t1500 FPGA, supporting VITA 57.4* FMC/FMC+ modules with up to x16 SerDes lanes. It features PCIe Gen5 x8 form factor, 200G Ethernet via QSFP56, PCIe Gen4 x4 over MCIO, 16GB GDDR6, and 8GB DDR4 memory.
- Varin AC7t1500 Development Board enables development of applications to suit wide range of customer requirements, from PCIe Add In card to FMC+ Carrier.
- Varin AC7t1500 Development Board eases connectivity & integration of FMC/FMC+ based modules with Achronix Speedster AC7t1500 FPGA.
- Flexible clocking scheme with support for external reference input and output over coaxial connectors.
- Supports SyncE and PTP clock recovery on network interface.
- Supports LFT JESD204C IP based demo, which runs with Analog Devices AD9082 FMC based evaluation board in Tabletop configuration.
- Additional accessories to aid in development and integration.
