- Aquila
- Aquila Mini
Main Features and Benefits

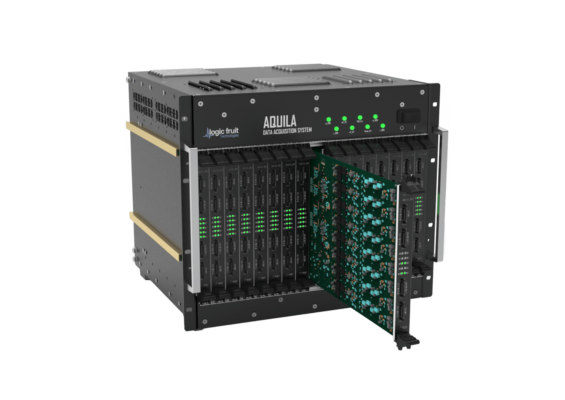

Aquila is a resilient EtherCAT DAQ system for mission-critical testing, featuring precise synchronization, 1:1 redundancy, and Linux-based setup and data tools. It supports TCP/IP transfers, multicast displays, and has a compact lab version.
- 128 channel Data Acquisition System with Built in Signal Conditioner.
- 19” Rack Mountable 9U chassis.
- EtherCAT interface with Ring Architecture (with synchronization).
- Scalable to 512 channels with 4 units cascaded on a single EtherCAT link.
- Scalable to 512 Channels with 5ksps sampling rate and upto 1024 channels with ≤ 2ksps sampling rate.

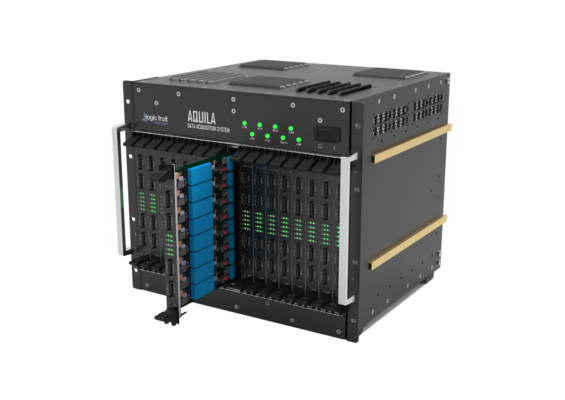

- Up to 16 sensor cards (6U size) of any type and any combination can be plugged in.
- Inbuilt signal conditioning with Programmable Gain, Filter Cut-off frequency, Sampling Rate, Excitation Voltage etc.
- Calibration for each of the channels.
- Trend Plot for real time graphical representation for Time Domain, FFT and VRMS.
- Capable of Online/Offline Processing of Acquired data.
- Data transfer from DAS Controller to DAS Sever over TCP/IP.
- Multicast displays connected to Server over UDP.
Main Features and Benefits

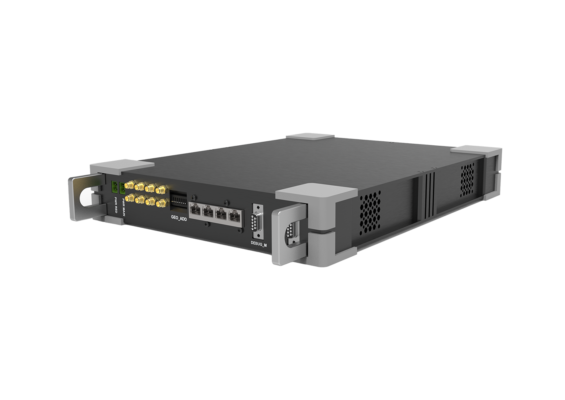

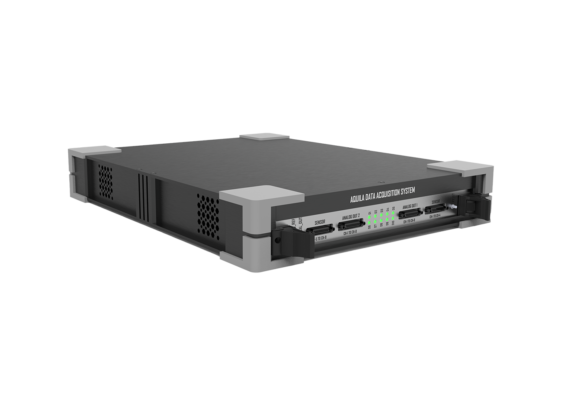

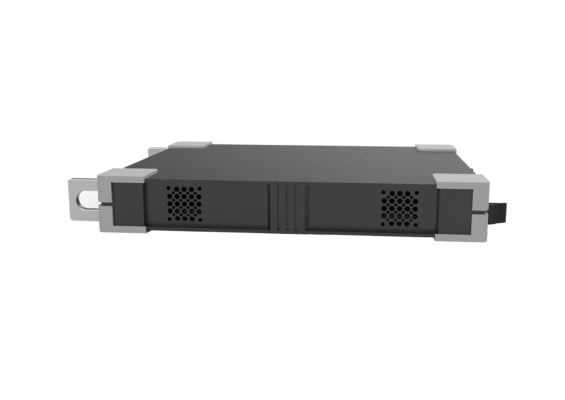

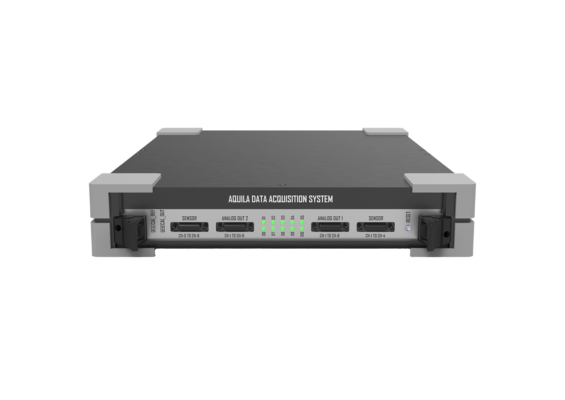

The Aquila Mini is a portable, standalone DAQ system tailored for single-sensor applications in labs and research. It offers built-in signal conditioning, uses Aquila’s software, and can be expanded by cascading units.
- 8 channels Data Acquisition System with Built in Signal Conditioner.
- Standalone Variant which accommodates a single sensor card.
- End-to-end solution for a single sensor application.
- Same set of SW applications.
- Portable for Lab applications, research projects and small-scale testing.
- Scalable to multiple channels/sensors by cascading multiple units.

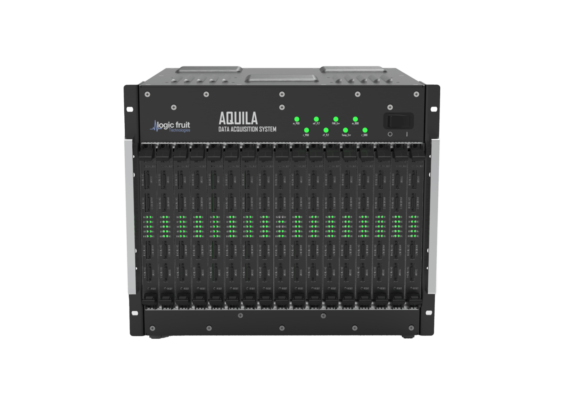

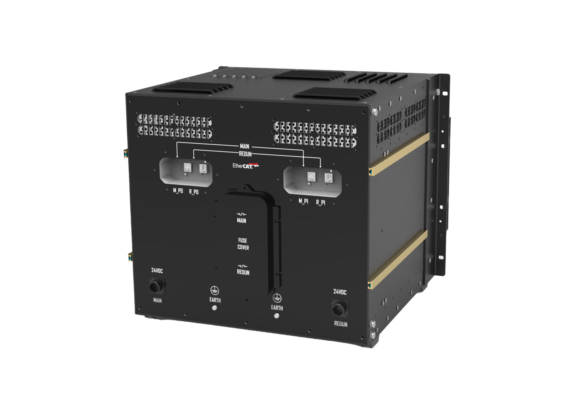

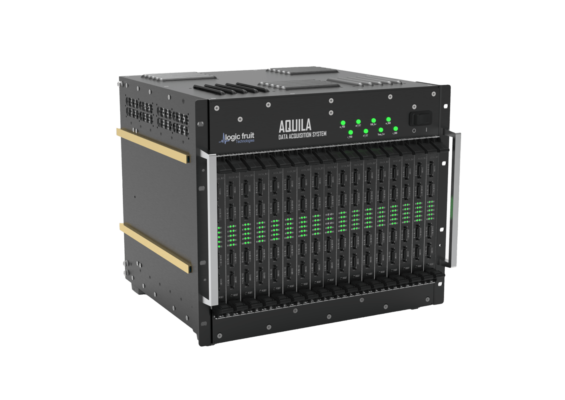

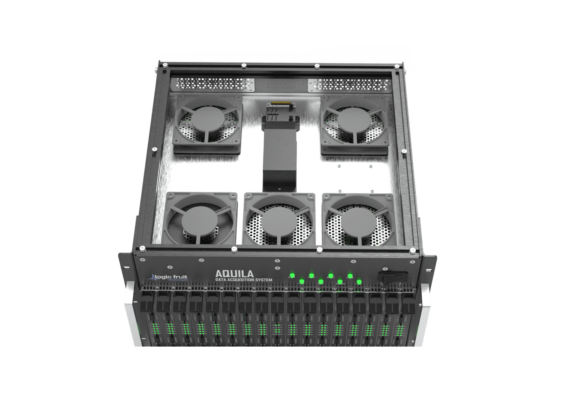

Aquila Scalable Data Acquisition System
Aquila is an EtherCAT DAQ system ideal for mission-critical testing applications involving a variety of sensors and demanding precise data synchronization. 1:1 redundancy for Power,Digitization circuitry, EtherCAT link, and Data acquisition nodes giving enough robustness against field set up failures. Linux-based SW applications for System configuration, calibration, acquisition, and data analysis. Also supports data transfer to Server over TCP/IP and Multicast displays. There is a Mini version designed for lab testing and research projects.
