ARINC 818-2 IP CORE

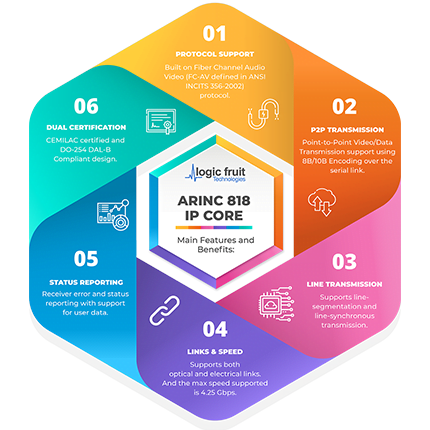

Main Features and Benefits
ARINC 818 (ADVB) is a high data rate video bus based on the ANSI Fiber Channel Audio-Video (FC-AV) protocol standards. Emphasizing cost reduction as well as speeding up the link initialization. ARINC 818 is a unidirectional interface that was developed for avionics systems, such as connecting mission processors to cockpit displays like HUDS, MFDs, PFDs, or HMDs. Used widely in Boeing 787 and the KC46A tanker, Airbus A350 and A400M, the COMAC C-919, the C-17, F15, F18 and various military aircrafts.
- Compliant to ARINC818-2 Specification. The max speed supported is 12.75 Gbps.
- Built on Fiber Channel Audio Video protocol.
- Point-to-Point Video/Data Transmission support using 8B/10B Encoding over the serial link.
- Supports both optical and electrical links.
- Supports line-segmentation and line-synchronous transmission.
- Receiver error and status reporting with support for user data.
- CEMILAC certified and DO-254 DAL-B Compliant design.
ARINC 818-2 IP Core Demo
ARINC 818-2 IP is most suited to meet the high bandwidth requirement of aircraft display systems and support transmission rate of upto 4.25 Gbps. This IP core is CEMILAC certified and has a DO-254 DAL-B Compliant design.
Block Diagram
