ARINC 818-3 IP CORE

Logic Fruit’s ARINC 818-3 IP Core delivers speed, safety, and certification – up to 28 Gbps with DO-254 and CEMILAC approval.

Home / IP / ARINC 818-3 IP CORE

ARINC 818-3 IP CORE Features and Benefits

ARINC 818-3 Compliance
Fully compliant with ARINC 818-3 specifications for seamless system integration.

High-Speed Performance
Supports line rates up to 28 Gbps with optical link capability for reliable, high-bandwidth data transfer.

Robust Protocol Support
Built on Fibre Channel Audio Video (FC-AV) protocol with 64B/66B and 256B/257B encoding for efficient point-to-point transmission.

Advanced Transmission Features
Enables line segmentation and line-synchronous transmission for precise video/data delivery.

Error Handling & Flexibility
Receiver provides error/status reporting along with support for user data.

Certified & Reliable Design
DO-254 DAL-B compliant and CEMILAC certified, ensuring aerospace-grade safety and trust.

Why ARINC 818 Matters for Modern Avionics

Fast, dependable, and coordinated video and data communication is essential for modern avionics. Beyond what older interfaces can manage, ARINC 818-3 provides a real-time, uncompressed protocol designed for the aerospace industry, supporting multi-line rates up to 28 Gbps with DO-254 compliance and CEMILAC certification.

Industry Challenges

Our Solution

ARINC 818-3 IP core enables ultra-fast, standardized video/data transmission on FPGAs.
Logic Fruit’s IP core cuts development time by 80% while ensuring aerospace-grade compliance.
Sub-millisecond latency ensures fast, reliable avionics communication.
ARINC 818-3 IP ensures certified, reliable performance on all major FPGAs

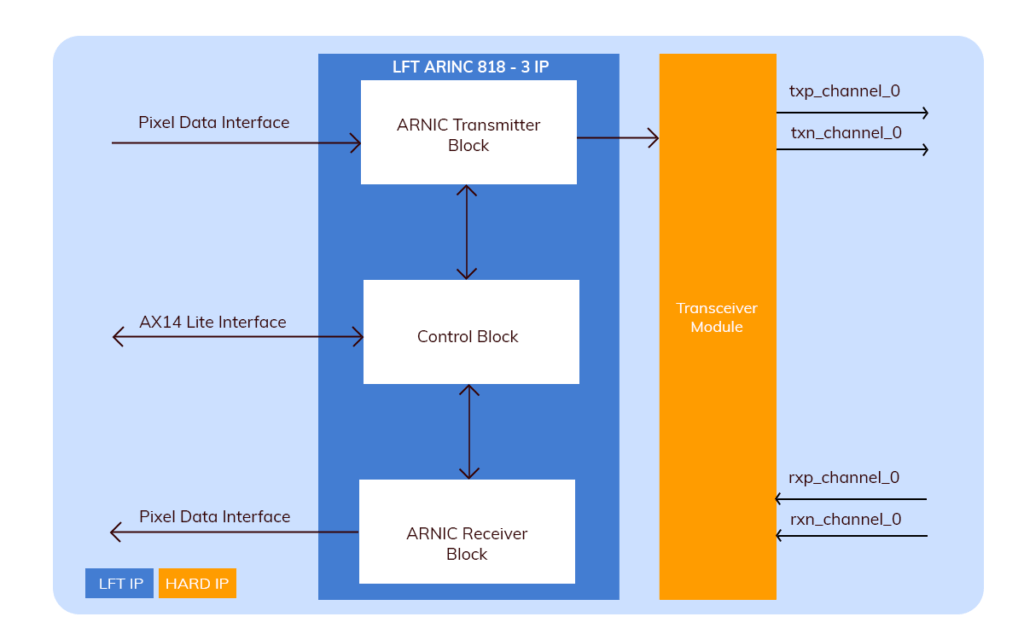

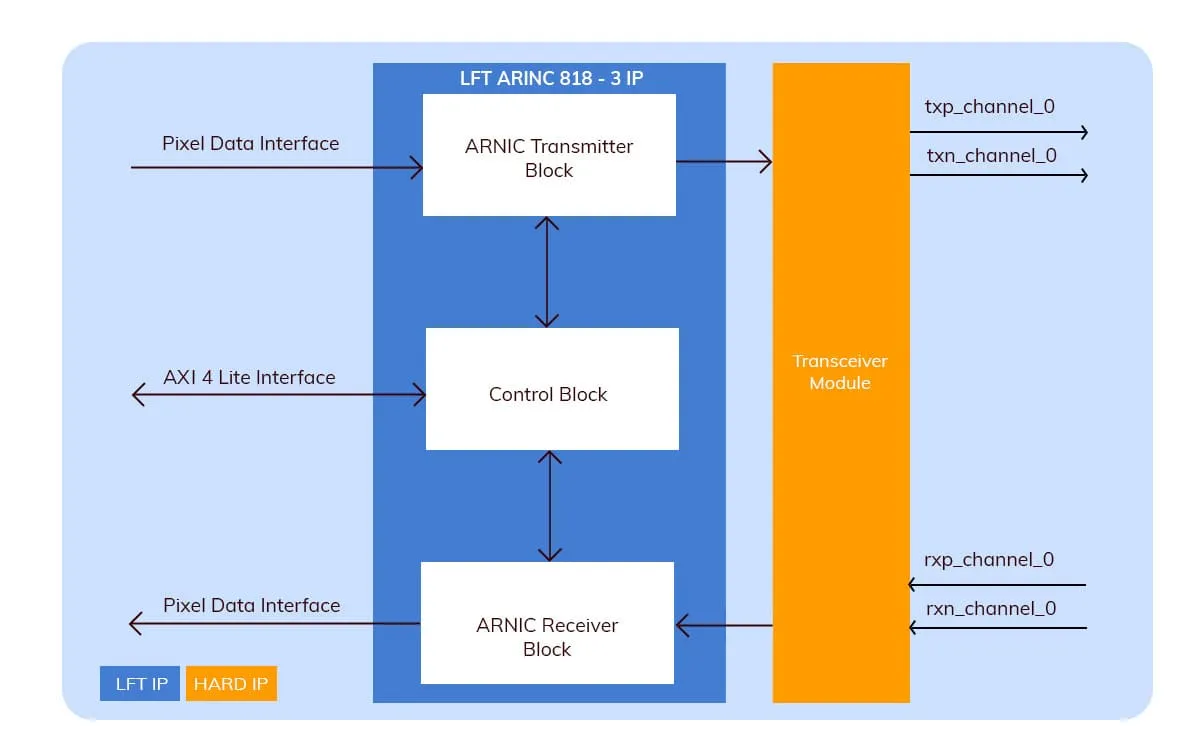

ARINC 818-3 IP CORE Block Diagram

Certifications & Compliance

With proven compliance and industry-recognized certifications, our ARINC 818-3 IP core is built for aerospace-grade performance.

CEMILAC
Certified

DO 178 / DO 254
Certified

AS9100
Certified

ARINC 818-3 IP CORE Applications and Use Cases

Commercial Aviation

In-flight entertainment systems, cockpit displays, and passenger information systems.

Use Cases

Seat-back entertainment
Cockpit multi-function displays
Cabin management systems

Military & Defense

Mission-critical video systems for defense applications and military aircraft.

Use Cases

Tactical displays
Surveillance systems
Mission computers

Surveillance Systems

High-resolution video transmission for security and monitoring applications.

Use Cases

Airport security
Border surveillance
Critical infrastructure monitoring

Get Your Datasheet

Download the datasheet to get detailed information about our ARINC 818- 3 IP core. Inside you’ll find:

Download ARINC 818-3 IP CORE Datasheet

Frequently Asked Questions

What FPGAs are supported by the ARINC 818 IP Core?

Our IP core is tested and validated on major FPGA families including Xilinx Zynq, Kintex, and Virtex series, as well as Intel Cyclone, Arria, and Stratix families. We provide optimized implementations for each platform.

Is the IP core compliant with aerospace standards?

Yes, our ARINC 818 IP Core is CEMILAC certified and supports DO-254 compliance requirements. It meets all ARINC 818-2 specification requirements for safety-critical aerospace applications.

What video formats and resolutions are supported?

The IP core supports various video formats up to 8K resolution with frame rates up to 120 FPS. It handles standard avionics video formats and provides configurable parameters for custom requirements.

How quickly can I integrate this into my existing design?

The IP core is designed for plug-and-play integration. With comprehensive documentation, reference designs, and our support team, most customers achieve initial integration within 1-2 weeks.

What support and documentation is provided?

We provide complete documentation including integration guides, reference designs, simulation models, and dedicated technical support throughout your development cycle.
